Panel Mounted Switchable Circuit Breaker

Series 187 -- Class Type III - Bussmann

This thermal circuit breaker combines switching functions and circuit protection into a single device.

Clear, single lever operation & mdash; vertical/horizontal orientation provides indication of trip status

"Trip Free" design cannot be held "ON" during fault current condition

Ignition protected safe for installation aboard gasoline powered boats

Vaporproof & waterproof (IP66 - power jetting/heavy seas)

Recessed mounting holes for clean appearance

Self-trimming case eliminates the need for mounting panels or trim bezels

Large clearance around terminal studs accepts heavy gauge wire lugs

Robust 5/16" terminals provide high torque connections

Round rear casing permits easy installation with standard sized hole saw

Interrupt rating 5000A @ 12V DC, 3000A @ 24V DC, 1500A @ 42V DC

48V DC maximum

CE marked; meets SAE J1171 external ignition protection requirements
Leaves warehouse: Next business day
(if in stock)

Shipping time: see chart

Made to order: No

zoom image
×

Current inventory as of Monday, 12:30 am Pacific time
Item Our SKU
Mfg P/N
Specs Status Price Quantity
Series 187 Panel Mount Thermal Circuit Breaker, 25A
SKU 167830

Mfg p/n 7035
Amps: 25A
Type: Panel Mount
6 in stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 30A
SKU 167831

Mfg p/n 7036
Amps: 30A
Type: Panel Mount
4 in stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 40A
SKU 167833

Mfg p/n 7038
Amps: 40A
Type: Panel Mount
4 in stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 50A
SKU 167834

Mfg p/n 7039
Amps: 50A
Type: Panel Mount
7 in stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 60A
SKU 167835

Mfg p/n 7040
Amps: 60A
Type: Panel Mount
3 in stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 70A
SKU 167836

Mfg p/n 7041
Amps: 70A
Type: Panel Mount
6 in stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 80A
SKU 167837

Mfg p/n 7042
Amps: 80A
Type: Panel Mount
8 in stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 90A
SKU 167838

Mfg p/n 7043
Amps: 90A
Type: Panel Mount
Out of Stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 100A
SKU 167839

Mfg p/n 7044
Amps: 100A
Type: Panel Mount
4 in stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 110A
SKU 167840

Mfg p/n 7045
Amps: 110A
Type: Panel Mount
Out of Stock$67.75
Series 187 Panel Mount Thermal Circuit Breaker, 120A
SKU 167841

Mfg p/n 7046
Amps: 120A
Type: Panel Mount
4 in stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 135A
SKU 167842

Mfg p/n 7047
Amps: 135A
Type: Panel Mount
Out of Stock$70.54
Series 187 Panel Mount Thermal Circuit Breaker, 150A
SKU 167843

Mfg p/n 7048
Amps: 150A
Type: Panel Mount
15 in stock$70.54

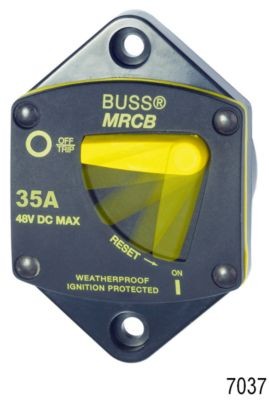

Series 187 Panel Mount Thermal Circuit Breaker, 35A
SKU 204730

Mfg p/n 7037
Amps: 35A
Type: Panel Mount
Out of Stock$67.00

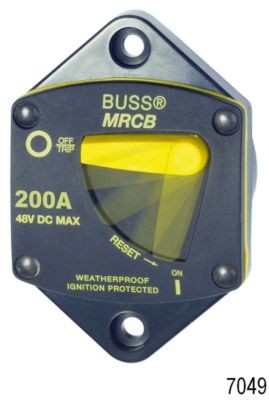

Series 187 Panel Mount Thermal Circuit Breaker, 200A
SKU 374413

Mfg p/n 7049
Amps: 200A
Type: Panel Mount
4 in stock$87.83
